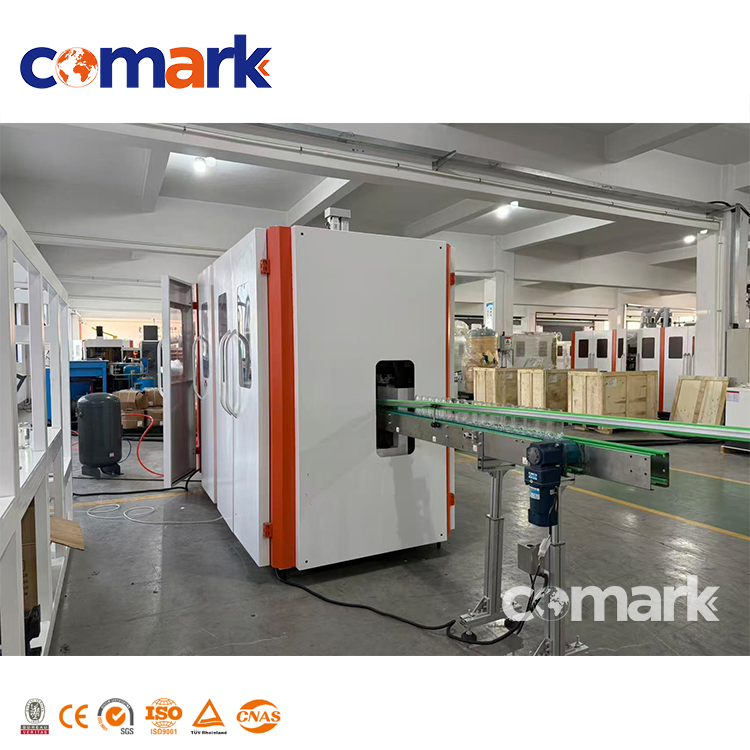

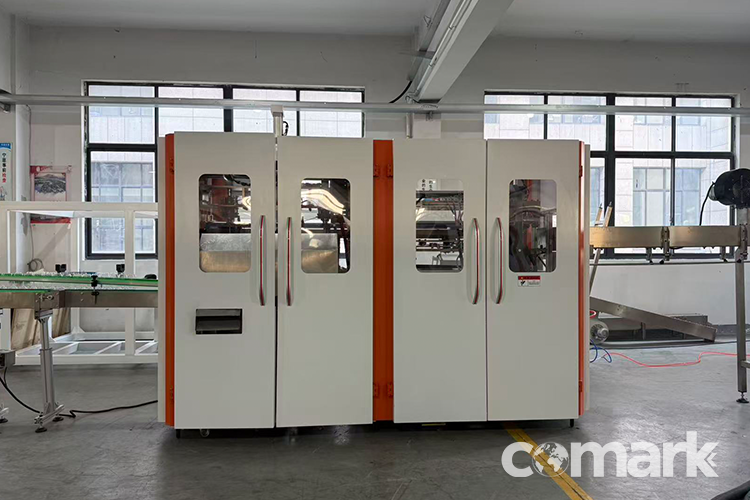

PET Bottle Cutting Machine

1.The technical parameters

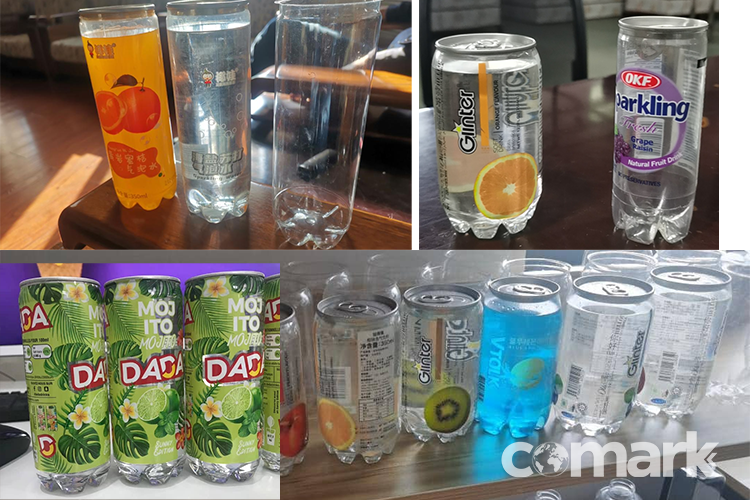

Cut type: cut of PET material can
Output: about 3500 bottles/hour
Equipment shape (length X width X height): 5800mmX1500mmX2500mm (including conveying)
Equipment weight: about 1.8 tons
Air consumption: about 3.2m3/min

2.Brief description of equipment

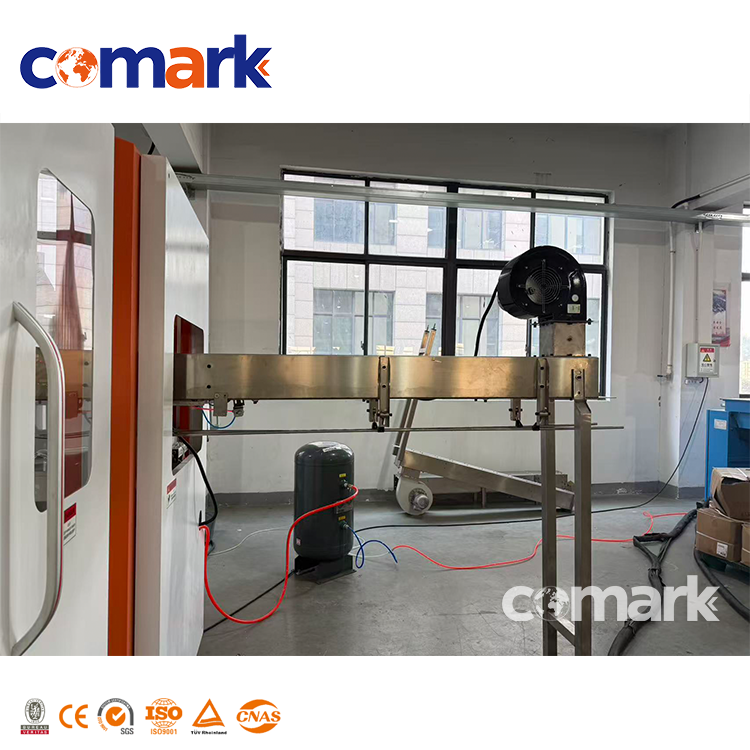

(1)Into the bottle air delivery device
Fan power: 1.1KW
Length: 2 meters long

(2)Pitch changing device
Drive motor: Servo motor 0.75KW
Transmission mode: synchronous belt transmission, guide post positioning
Variable pitch range: 50-260mm

(3)Bottle feeding device
Drive motor: Servo motor 1.1KW
Transmission mode: synchronous belt transmission, linear guide rail positioning
Bottle clamping method: cylinder clamp bottle

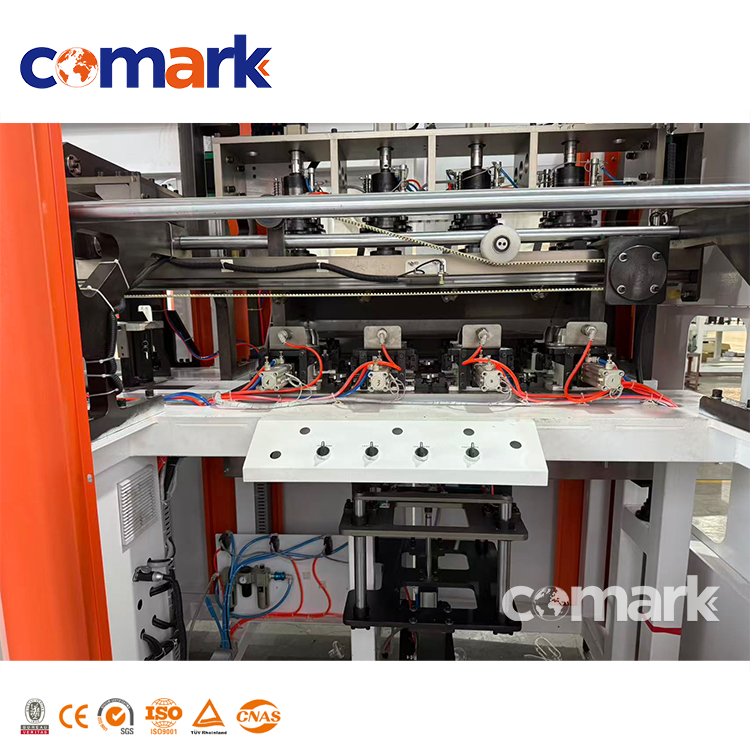

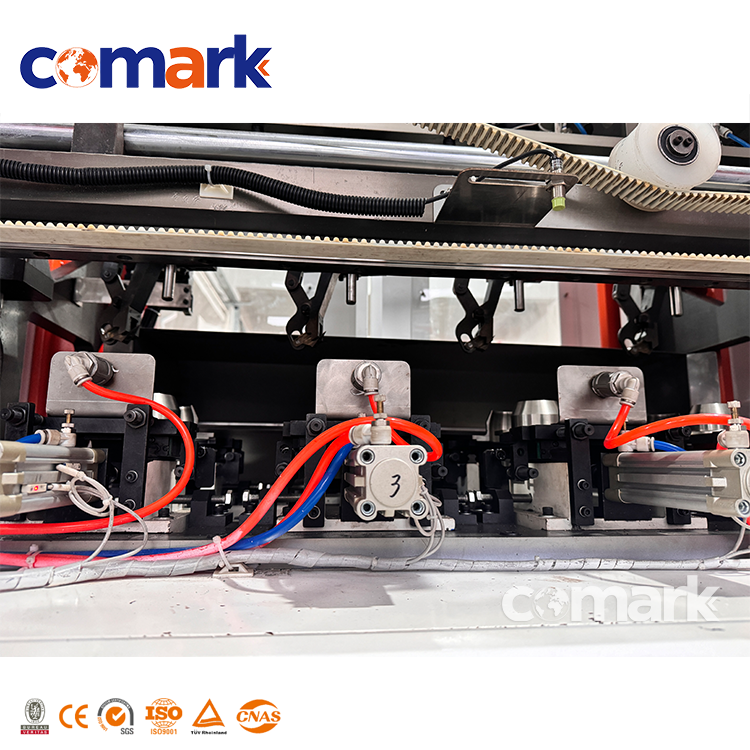

(4)Cutting device
Cutting station: 4 stations
Cutting motor: 400W servo motor
Head lift: Servo electric cylinder, 0.75KW servo motor drive

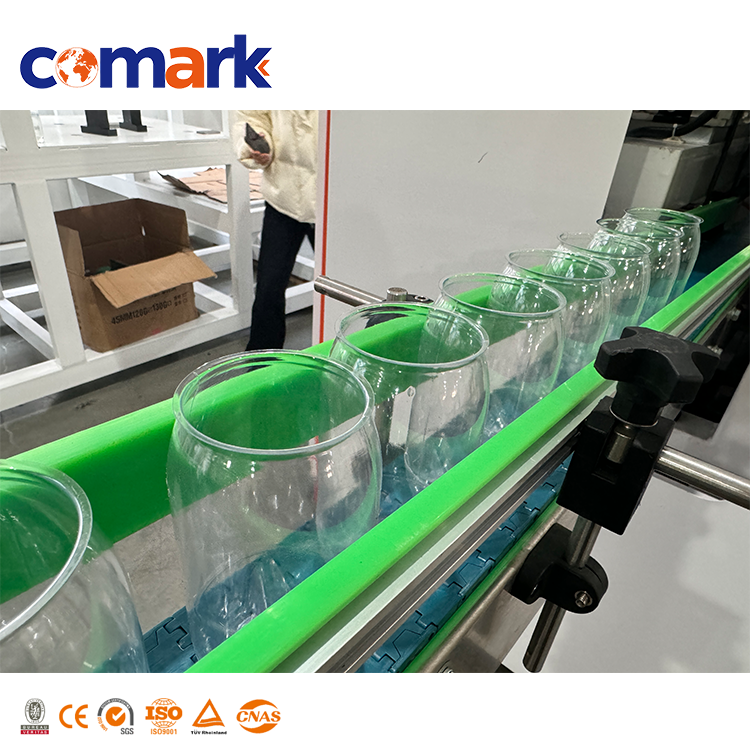

(5)Bottle-out device
Bottle-out method: Bottle-out conveyor belt
Drive power: 180W speed motor
Conveyor belt length: 1.8 meters

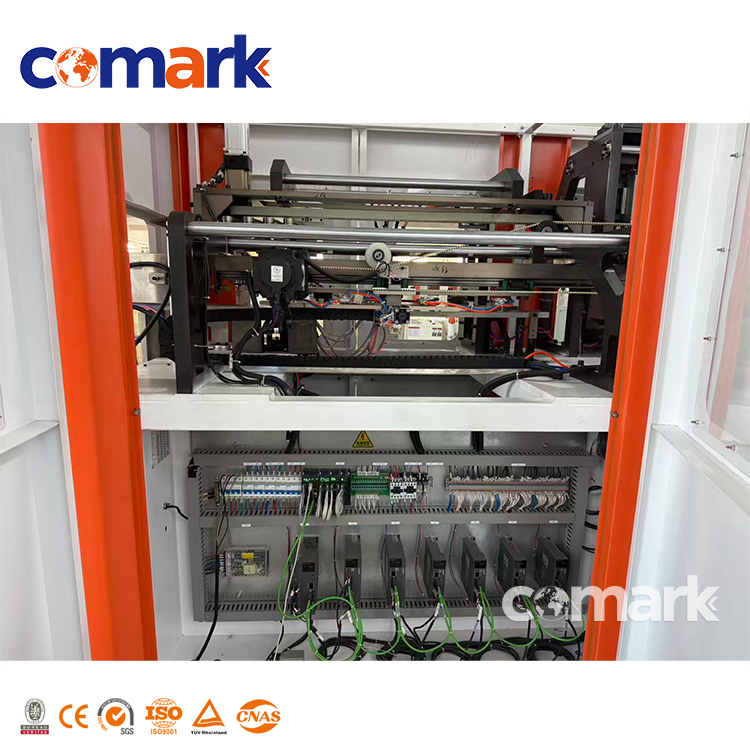

(6)Control method
PLC control, man-machine interface operation

▶FAQ

Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side. Normally production time is around 35-75 days. The exact time depends on what kinds of machine you ordered. The shipping time is based on your destination port.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you. You can come to China.Check it!
