Automatic 4 Cavities Bottle Blowing Machine
Description

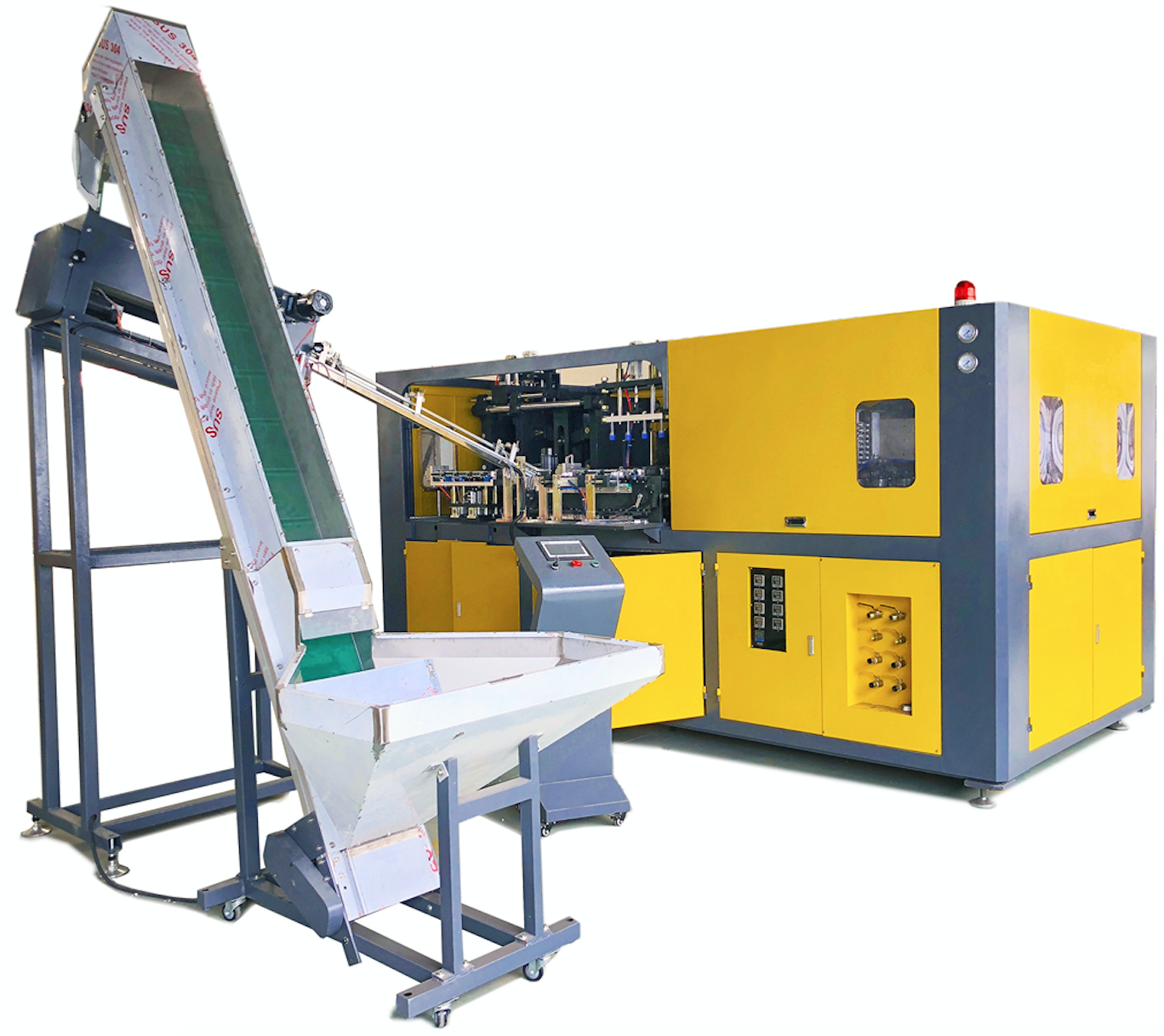

Automatic 4 Cavities Bottle Blowing Machine
Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
--------blowing machine connecting diagram--------
| Machine Model | ECO-4L | |
| Theoretical output | 4500 BPH | |
| Bottle Spec. | Neck size |
18-38mm |
Max. Bottle Size |
2000ml | |
Max. Bottle Diameter |
105mm | |
Max. Bottle Height |
330mm | |
Power Spec. |
Lamp qty. |
32pcs |
Heating area |
4 | |
| Heating Consumption | 70KW | |
| General Rate Power | 82KW | |
High Pressure Air Consumption |
4.0 m3/min | |
| Machine Dimensions | Main Machine | 4200 * 2100 * 2400 mm |
Preform Auto-loader |
1900 * 1200 * 2300 mm | |
Machine Weight |
Main Machine | 5000KG |
| Preform Auto-loader | 300KG | |
Visit exhibition in different countries
Send Comark Machine an request and tell your basic inquiry
Comark Machine sales manager will reply you in short time and add instant chatting tool
Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and customer budget .
Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side. Normally production time is around 35-75 days. The exact time depends on what kinds of machine you ordered. The shipping time is based on your destination port.
